Seat Ibiza II Kit Car Evo 2 (1997)
Home » Rally Cars » Seat Ibiza II Kit Car Evo 2
16421550.jpg Source Development chain
1985: Seat Ibiza I Bimotor
1996: Seat ibiza II Kit Car
1997: Seat Ibiza II Kit Car Evo 2

Click here
On board in tarmac: see video

Specifications

Group/Class A/7 Homologation number: A 5517 (12/02 VK)
Years active 1997-1998 Homologation start: 1/4/1997
Homologation end: 31/12/2001
Engine
Type EA827/EA113 R4 2.0 16V, straight 4cyl, 4 stroke, petrol engine located front transverse
Capacity 1984 cc WRC: 1984 cc
Bore x Stroke (mm) 84.0 x 89.5
Compression ratio 12.2:1
Output power - torgue 260 HP / 8400 rpm 22.4 kgm (220 Nm) / 6500 rpm
Main bearings 5 of 54mm diameter connecting rod length between centers 149mm, big end bearing internal diameter 48mm
Materials block: CG25 grey cast iron cylinderhead: cast aluminium alloy
Cams/valves dual overhead camshafts (DOHC), belt driven 4 valves/cyl. - 16 valves total. 32.1mm inlet valve diameter, 27.1mm exhaust valve diameter. Angle between inlet valve axis and vertical 25o. Angle between exhaust valve axis and vertical 0o. 2 coil springs per intake/exhaust valve
Aspiration natural, Magneti Marelli MP electronic multipoint fuel injection. 1999+: inlet air restrictor (22/14 VO) and catalytic converter fitted
Ignition mapped electronic with distributor
Cooling system watercooled 6.5 lt
Lubrication system wet sump 4.3 lt with 1 oil cooler
Transmission
Type front wheel drive Hewland HP2000, 6 speed sequential gearbox
Gearbox ratios 1st: 3.000/1 (36/12)
2nd: 2.429/1 (34/14)
3rd: 1.706/1 (29/17)
4th: 1.471/1 (25/17)
5th: 1.300/1 (26/20)
6th: 1.210/1 (23/19)
R: 2.875/1 (46/16)
1st: 2.692/1 (35/13)
2nd: 2.067/1 (31/15)
3rd: 1.688/1 (27/16)
4th: 1.471/1 (25/17)
5th: 1.333/1 (24/18)
6th: 0.875/1 (20/25)
R: 2.875/1 (46/16)
1st: 3.000/1 (36/12)
2nd: 2.583/1 (31/12)
3rd: 2.200/1 (33/15)
4th: 1.846/1 (24/13)
5th: 1.556/1 (28/18)
6th: 1.333/1 (24/18)
R: 2.875/1 (46/16)
Diffrential ratio 3.667/1 (66/18), 3.389/1 (61/18), 3.938/1 (63/16), 3.941/1 (67/17), 4.200/1 (63/15), 4.250/1 (68/16), 4.467/1 (67/15), 4.643/1 (65/14), 4.857/1 (68/14), 5.077/1 (66/13), 4.714/1 (66/14), 4.500/1 (63/14), 4.462/1 (58/13), 4.385/1 (57/13), 4.357/1 (61/14), 4.308/1 (56/13), 4.286/1 (60/14), 4.231/1 (55/13), 4.154/1 (54/13), 4.133/1 (62/15), 4.071/1 (57/14) 4.000/1 (56/14), 3.929/1 (55/14), 3.857/1 (54/14), 3.800/1 (57/15). 4.429/1 (62/14), 4.571/1 (64/14), 4.643/1 (65/14) helical gears limited slip front differential
Clutch dry carbon triple disk, 210mm diameter
Chassis-body
Type steel monocoque Typ 6K chassis of VW A3 platform with roll-cage and front steel subframe for the front suspension. 3 door hatchback steel bodyshell with PVC front and rear bumbers. Extended steel wheel arches and plastic rear spoiler
Front suspension mac pherson strut with lower wishbone, coil springs, telescopic gas shock absorbers and anti roll bar 18-20-22-24-26-28-30mm diameter
Rear suspension trailing torsion beam axle with compound link, coil spring, telescopic gas shock absorbers and anti roll bar 18-20-22-24-26-28-30mm diameter
Steering system hydraulic power assisted rack and pinion
Brakes front ventilated disks 280/295/325/355/376/ (1998+: 390) mm diameter with 2/4/6/8 or (1998+) 12 aluminium piston calipers, rear ventilated disk of 226/254/266/280/285mm diameter with 2/4 or (1998+) 6 aluminium piston calipers dual circuit with adjustable ration split front to rear and ATE 9" servo
Dimensions
length: 3.813 m (150.1") width: 1.770 m (69.7") height: 1.420 m (55.9")
wheelbase: 2.440 m (90.1") front track: 1.606 m (63.2") rear track: 1.608 m (63.3")
Rims - tires 6 x 15" - 16", 1998+: 8 x 18"
Weight 960 kg, 2000+: 1000kg
Weight/power 3.7 kg/HP
Fuel tank

Results in WRC

Races

Works team: Seat Sport

Season

F2 classification noted in brackets
Entry Rally event
Driver
Codriver
Team MC SVE KEN POR ESP TdC ARG GRE N.Z FIN IND S.R AUS RAC
Oriol Gómez
Marc Martí
works transm ission 9th (2nd) 15th (1st) 15th (1st) 23rd (6th) ele ctri cal 17th (2nd) sus pen sion
Harri Rovanperä
Voitto Silander
works acci dent 8th (1st) acci dent 10th (1st) 7th (1st) 10th (1st) 10th (1st) 9th (1st)
Bruno Thiry
Stéphane Prévot
works eng ine
Erwin Weber
Manfred Hiemer
works sus pen sion 9th (2nd)
Statistics
Works starts/finishes 19/12 3/0 2/2 2/1 2/1 2/2 2/2 2/1 2/2 2/1

Information and articles

Article from 4T 323, 8/1997

Click here

16421550.jpg Source
Toni Gardemeister in Australia rally '98
3117_4l.jpg Source
seat-ibiza-kit-car-evo2-1818_2l.jpg Source
Ibiza%20Kitcar%20Evo%202%20-%202.jpg Source
Ibiza%20Kitcar%20Evo%202%20-%203.jpg Source

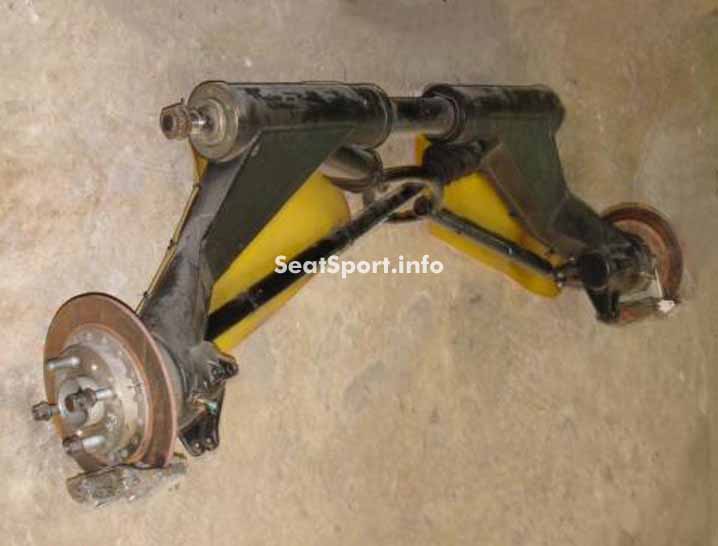

Rear suspension new design
