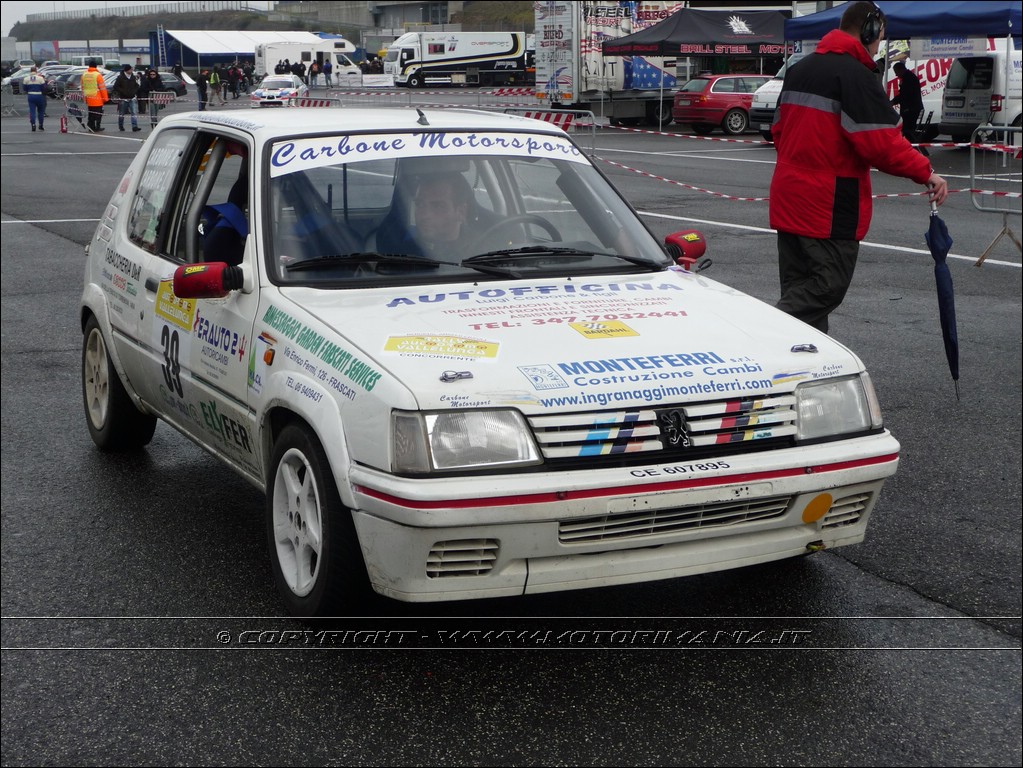

Peugeot 205 Rally group A (1988)
 Source |
Development chain 1988: Peugeot 205 Rally 1994: Peugeot 106 S1 Rally 1997: Peugeot 106 S20 Rally |
Specifications
Group A manual| Group/Class | Α/5 | Homologation number: A5366 |
| Years active | 1988 - 1991 | Homologation start: 1/7/1988 Homologation end: 31/12/1999 |
| Engine | ||
|---|---|---|
| Type | PSA TU24 Â/K, straight 4cyl, 4 stroke, petrol engine | located front transverse with 6o front inclination |
| Capacity | 1293.55 cc | WRC: 1293.55 cc |
| Bore x Stroke (mm) | 75.0 x 73.2 | |
| Compression ratio | 11.6:1 | |
| Output power - torgue | 130 HP / 7600 rpm | 13.7 kgm (134 Nm) / 6000 rpm |
| Main bearings | 5 of 60mm diameter | connecting rod length between centers 112.3mm, big end internal diameter 48.6mm |
| Materials | block: aluminium alloy 187.4mm height | cylinderhead: aluminium alloy 111.1mm height |
| Cams/valves | 1 overhead camshaft (SOHC) belt driven | 2 valves/1cyl. - 8 valves total. 39.5mm inlet valve diameter, 31.4mm exhaust valve diameter. 33o angle between valves axis, symmetrical to the vertical direction |
| Aspiration | natural, 2 x Weber 40 DCOM 2 barrel carburetors | |
| Ignition | electronic, firing order 1-3-4-2 with Eyquem FC82LS-2 twin electrode spark plugs, or Champion BN60 single electrode spark plugs | |
| Cooling system | watercooled | 6.5 lt |
| Lubrication system | wet sump | 6.5 lt |
| Transmission | ||
| Type | front wheel drive | 5 speed MA5 gearbox |
| Gearbox ratios | 1st: 3.418/1 (41/12) 2nd: 1.950/1 (39/20) 3rd: 1.357/1 (38/28) 4th: 1.054/1 (39/37) 5th: 0.854/1 (35/41) R: 3.583/1 (43/12) |
1st: 3.418/1 (41/12) 2nd: 2.357/1 (33/14) 3rd: 1.800/1 (36/20) 4th: 1.466/1 (44/30) 5th: 1.206/1 (41/34) R: 3.583/1 (43/12) |
| Diffrential ratio | 4.284/1 (60/14), 4.769/1 (62/12), 4.538/1 (59/13). 4.063/1 (65/16), 3.938/1 (63/16), 3.765/1 (64/17), 3.444/1 (62/18) 1990+: 4.923/1 (64/13) |
helical gears 40% limited slip front differential |
| Clutch | dry single disk, 181.5mm diameter | |
| Chassis | ||
| Type | steel monocoque chassis with roll-cage. Front and rear steel subframes. 3 door hatchback steel bodyshell with plastic wheel fenders extensions, plastic rear top spoiler and polycarbonate bumpers | |
| Front suspension | Mac pherson strut with lower L wishbone, coil springs, telescopic gas shock absorbers and anti-roll bar | |
| Rear suspension | trailing arm with torsion bars, telescopic gas shock absorbers and anti-roll bar | |
| Steering system | rack and pinion | 2.25 turns lock to lock. 28.1/1, 22.3/1, 19.1/1, 16.7/1, 14.8/1 |
| Brakes | front ventilated disks 247mm diameter with 1 aluminium piston caliper, or 256/260/273/290/298/303/315mm diameter with 4 aluminium piston calipers. Rear drums 180mm diameter, or rear solid disks 247/265mm diameter with 1 or 2 aluminium piston calipers | dual circuit with servo, adjustable ratio split front to rear |
| Dimensions | ||
| length: 3.705 m (145.9 in) | width: 1.585 m (62.4 in) | height: 1.374m (54.1 in) |
| wheelbase: 2.420 m (99.3 in) | front track: 1.385 m (54.5 in) | rear track: 1.325 m (52.2 in) |
| Rims - tires | 5.5" x 13" or 14" | Michelin, asphalt 16/53-13, gravel 14/60-14 |
| Weight | 785 kg | |
| Fuel tank | 50 lt | |
| Drag coefficient | 0.36 | |
Results in WRC
Races
Works team: Peugeot Talbot Sport
A/5 classification noted in brackets
| Entry | Rally event | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Driver Codriver |
Team | (SVE) Entry list |
MC Entry list |
POR Entry list |
KEN | TdC | GRE | (NZ) | ARG | FIN | AUS | SR | (CdI) | RAC | |
| Simon Davison Chris Wood |
works | 22nd (1st) | |||||||||||||
| Ivan Postel 'Dgemo' Timo |
37th* | ||||||||||||||
| Maurice Dumas Jean-Paul Diague |
40th* | ||||||||||||||
| Pierluigi Pollero R De Castelli |
78th* | ||||||||||||||
| Michel Delserre L.Oriti-Niosi |
dnf* | ||||||||||||||
| Richard Sagnard Jocelyn Muller |
dnf* | ||||||||||||||
| Jean-Marc Ivens Jean-Marc Macé |
12th (1st) | ||||||||||||||
| Christian Mathieu Laurence Durand |
16th* | ||||||||||||||
| Jean-Louis Riblet Jean-Claude Poirot |
19th* | ||||||||||||||
| Hervé Charbonneaux Jean-Sébastien Antoniotti |
20th* | ||||||||||||||
| Patrick Altana Bruno Burgalières |
21st* | ||||||||||||||
| Eric Ruggeri Charly Voglimacci |
23rd* | ||||||||||||||
| Bilou Damien Chapotot |
26th* | ||||||||||||||
| Izé De Castelli Marquetou |
27th* | ||||||||||||||
| Georges Chiocca Franck Rocchetti |
29th* | ||||||||||||||
| Daniel Mesnager Christophe Guy |
30th* | ||||||||||||||
| Jean-Louis Dionisi Charles-Napoléon Sacchi |
31st* | ||||||||||||||
| Philippe Giovanni Charlie Stoyanovitch |
dnf* | ||||||||||||||
| R Rebière C Castel |
dnf* | ||||||||||||||
| Michel Bouchet Dominique Denis |
dnf* | ||||||||||||||
| Joseph le Bihan Serge Kervarrec |
dnf* | ||||||||||||||
| Dimitris Nassoulas Dionissis Fanos |
37th* | ||||||||||||||
| Níkos Tagoulis Nestoras Papakonstantinou |
dnf* | ||||||||||||||
| Patrick Leroy Christian Reut |
54th* | ||||||||||||||
| Denis Menestrier Véronique Loivel |
56th* | ||||||||||||||
| Jean-Pierre Labaune Jacques Bonnemayre |
dnf* | ||||||||||||||
| Frank Larsen Jim Bevan |
differ ential* | ||||||||||||||
| Stuart Harington Lesley Nickson |
eng ine* | ||||||||||||||
| Statistics | |||||||||||||||
| Starts/finishes | 2/2 | 1/1 | 1/1 | ||||||||||||
*Group N1 entries
