Opel Kadett E 4S (1986)
Home » Rally Cars » Opel Kadett E 4S
4s.jpg Source Development chain
1987: Opel Kadett E 4S
1998: Opel Astra G Kit Car
Table of Contents

Click here and here

Specifications

Click here

electronic, firing order 1-3-4-2
water-cooled
dry sump with mid-mounted twin oil coolers
Xtrac, 4WD
6 speed manual gearbox
Driver adjustable F/R ratio F28/R72 to F50/R50 hydraulic system
GM T-Platform steel monocoque chassis (middle section only) 3 door hatchback design with integral roll cage and sump guard. Front and rear spaceframe. Kevlar body panels.
rack and pinion steering
f/r disc brakes. Dual circuit with servo, adjustable ratio split front to rear
length: 4256 mm / 167.6 in
width: 1760 mm / 69.3 in
height: 1393 mm / 54.8 in
wheelbase: 2500 mm / 98.4 in
900kg


Opel-Kadett-4S.jpg Source4s_andrews.jpg Source4s_engine.jpg Source6199_kadett_4x4.jpg Source

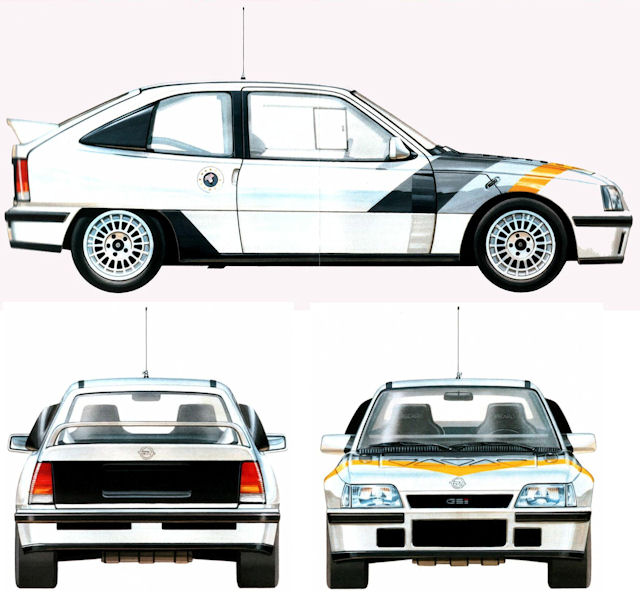

Drawings

rallye.jpg Sourceautowp.ru_opel_kadett_rallye_4x4_gr.b_3.jpg Source
