Mitsubishi Lancer CS2A WRC (2001)
Home » Rally Cars » Mitsubishi Lancer CS2A WRC
80151.jpg Source Development chain
1981: Mitsubishi Lancer A176A Turbo
2001: Mitsubishi Lancer CS2A WRC
2002: Mitsubishi Lancer CS2A WRC2
2004: Mitsubishi Lancer CS2A WRC04
2005: Mitsubishi Lancer CS2A WRC05

Specifications

Click here and here and here
Homologation number: A 5632 (01/01 WR)
Homologation start: 1/10/2001
Homologation end: 31/12/2011
Engine: 4G63T straight 4cyl
Capacity: 1996cc, WRC: x 1.7 = 3393cc
85.5x86.9
Clutch: Carbon triple plates
Transmission: 6-speed INVECS type shift (sequential)
steel monocoque CS2A chassis with roll-cage. 4 door saloon bodyshell.
Front suspension: macpherson struts with lower wishbones, coil springs, Ohlins telescopic gas shock abrorbers and anti roll bar
Rear suspension: macpherson struts with lower wishbones, coil springs, Ohlins telescopic gas shock abrorbers and anti roll bar


Results in WRC

Statistics

2001 2002 2003 2004 2005 Total
Works
Races 4 8 12
Entries/finishes 8/4 18/13 26/17 (65.4%)
Others
Races 1 1 2
Entries/finishes 1/1 1/1 2/2 (100%)
Total WRC results
Races 4 8 1 1 14
Entries/finishes 8/4 18/13 1/1 1/1 28/19 (67.9%)
Total points 5 19 24
(1.714 per race)
(0.857 per entry)

Races

Works team: Marlboro Mitsubishi Ralliart

Season
Entry Rally event
Driver
Codriver
Team MC SVE POR ESP ARG CY GRE KEN FIN NZ S.R TdC AUS RAC
Tommi Mäkinen
Risto Mannisenmäki
works lost wheel acci dent 6th acci dent
Freddy Loix
Sven Smeets
works 12th 12th 11th tran smis sion
Total points
()
5 5
Statistics
Works starts/finishes 8/4 2/1 2/1 2/2 2/0

111321_6mg.jpg Source
Active center differential (ACD)
111321_8mg.jpg Source
Electronically Active Yaw Control (AYC) rear differential
p119424_large+Mitsubishi_Lancer_Evolution_VII+Suspension.jpg Source

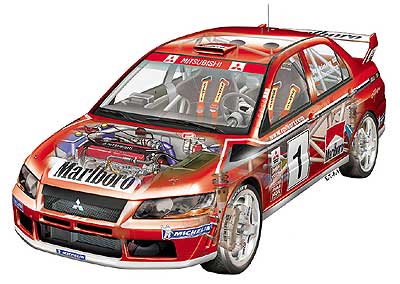

Drawings

radiografia.jpg Source
mitsubishi-lancer-evolution-vii-2.gif Source

Engine

111321_3mg.jpg Source

Gearbox

111321_11mg.jpg Source
W5M51-type 5-speed gearbox used in street version

Chassis

111321_19mg.jpg Source
