Home » Racing Sports Cars » Lotus 8
Source
Table of Contents
|
Click here
Specifications
7 units built
Click here and here
- 1500cc Connaught engine
MG XPEG, straight 4 cyl, 4 stroke, petrol engine. Click here
1466cc, 72.0 x 90.0 mm
8.33:1
70 HP / 5700 rpm
78 lbft / 3400 rpm
cast iron block, aluminium alloy head
drop forged steel crankshaft with 3 main bearings
2 valves / cylinder, OHV, chain driven
aspiration, natural with 2 x SU H6 Carburetors
firing order 1-3-4-2
water cooled
wet sump
Coventry Climax FWA "75", straight 4 cyl, 4 stroke, petrol engine
1098cc, 72.4 x 66.68 mm
9.8 : 1
56 kW / 75 hp @ 6200 rpm
92 Nm / 68 ft-lb @ 5000 rpm
drop forged steel crankshaft with 3 main bearings
2 valves / cylinder, SOHC
aspiration, natural with 2 x 1-1/2" SU H4 horizontal carburetors, 2 x Weber 38 DOC3
distributor ignition
water cooled
MG TC, 4 speed manual gearbox
aluminium body on tubular steel spaceframe chassis
Front suspension swing axles, coil springs over dampers
Rear suspension DeDion axle, transverse coil spring over damper
drums, all-round
Length 3962 mm (156 in)
Width 1397 mm (55 in)
Height 812 mm (32 in)
Wheelbase 2222 mm (87.5 in)
Track (fr/r) 1226 mm (48.3 in) / 1206 mm (47.5 in)
520kg
Results in WSCC
Car entry, chassis number | Car number/ result | ||||||||
Buenos Aires | Sebring | Mille Miglia | Le Mans | Tourist Trophy | Carrera Pan | ||||
Team | 1000km | 12h | 1600km | 24h | |||||
Lotus Engineering (MG 1.5) | #41, acci dent | ||||||||
Lotus Engineering (MG 1.5) | #42, track rod | ||||||||
Lotus Engineering (Climax 1.1) | #46, wheel | ||||||||
Statistics | |||||||||
Works Starts/finishes 3/0 | 3/0 | ||||||||
Drivers | Team entries and car number | ||||||||
Lotus Engineering | |||||||||
Colin Chapman | 41 | ||||||||
Michael Costin | 41 | ||||||||
Nigel Allen | 42 | ||||||||
Mike Anthony | 42 | ||||||||
Dick Steed | 46 | ||||||||
Peter Scott-Russell | 46 |
Source
Source
Climax FWA engine
Source
Climax FWA engine block
Source

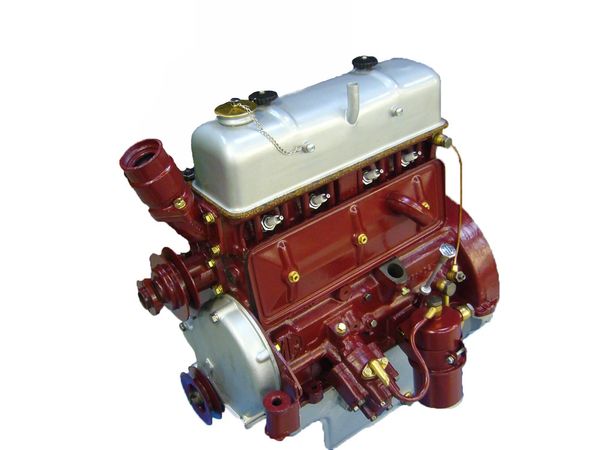

MG XPEG engine
Source

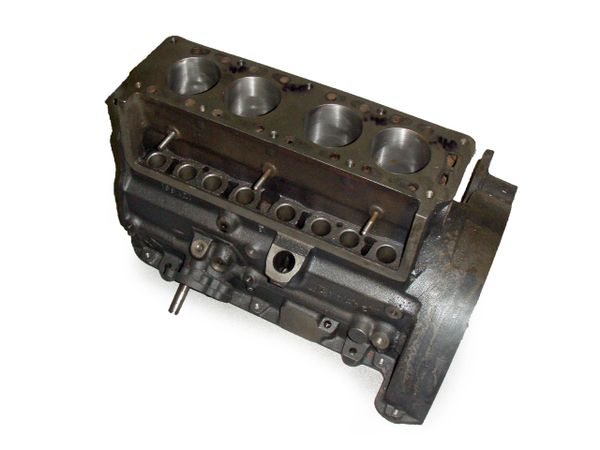

MG XPEG engine block
Source
MG XPEG engine block
Source
MG XPEG engine block
Drawings
Coventry Climax FWA engine
SourceMG XPEG engine
SourceSource
