Lola T286 group 6 (1976)

Home » Racing Sports Cars » Lola T286

IMG_5462G.jpg Source

Chassis numbers
Chassis history

Specifications

4 units built
Click here

Engines

Analytical specifications and drawings

V8 (90o) cylinder
2993cc capacity
DOHC with 4 valves per cylinders
Natural aspiration with Lucas Mark II mechanical fuel injection
Power output, 445 HP / 332 KW @ 10500 rpm
Torque, 339 Nm / 250 ft lbs @ 8500 rpm

Hewland DG 300, 5 speed manual gearbox
glass-fibre reinforced plastic panels bodyshell on aluminium monocoque chassis
Front suspension double wishbones, coil springs over dampers, anti-roll bar
Rear suspension reversed lower wishbones, top links, twin trailing arms, coil springs over dampers, anti-roll bar
rack and pinion steering
ventilated discs, all-round
length 4450 mm
width 1950 mm
height 930 mm
wheelbase 2340 mm
700kg


Results in WSCC

Season for Sports
Car entry Car number/ result
Nurb Monza Imola Pergusa Mosport Dijon Salzburg
Team 300km 4h 500km 200mile 500km 200mile
Xavier Lapeyre/ Alain Cudini, T286-HU7 #8, in entry list* #18, 5th
Total points
6
6
Statistics
Works Starts/finishes 1/1 1/1

*Jean-Pierre Jaussaud/ Pierre-Marie Painvin entry


11-Pisland-Classic-B-Skidmore-R-Sports-Lola-T286-01.jpg Source
6226938800_f4ddeac04c_z.jpg Source
1977LM14_car.JPG Source
JM7_7673-1b2b0.jpg Source

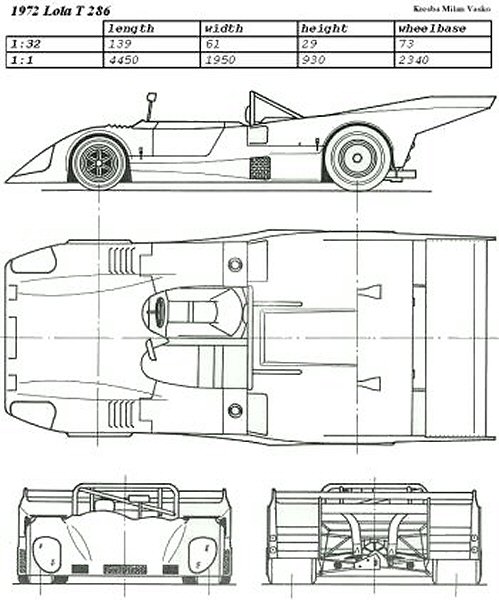

Drawings

lola-t286-3.jpg Source
T286_Plan.jpg Source
