Lola B2K/10 group LMP (2000)

Home » Racing Sports Cars » Lola B2K/10

lola10taurus.jpg Source

Chassis numbers
Chassis history

Specifications

6 units built
Click here
Click here and here and here and here and here for Judd

Roush/Ford Windsor Boss 366, V8 (90o) cyl, 4 stroke, petrol engine. Ford Windsor Boss 351 alu Block
5995cc, 102.4 x 91.0 mm
620 bhp / 456 kw @ 7200 rpm
730 Nm / 538 lb-ft.@ 6500 rpm
356-T6 aluminium M-6010-Z351 block 241mm deck height, 111.25mm bore spacing, 356-T6 aluminium alloy Ford C3 head
forged steel crankshaft with 5 main bearings 70mm diameter, connecting rod length between centers 157.5mm
camshaft in block chain driven with overhead valves (OHV) and 56mm cam journals, 2 valves/cylinder - 16 valves total, 53.3mm inlet valve diameter, 40.6mm exhaust valve diameter. (51.6mm inlet valve diameter, 41.9mm exhaust valve diameter)
aspiration, natural with Bosch Motronic MS2.9 multipoint electronic fuel injection, Cross-Ram fuel injection (2 injectors per cylinder)
Zytek engine management, Motorcraft AGS-series spark plugs, firing order 1-3-7-2-6-5-4-8
GT1: 2 x 38.5 mm inlet restrictors
LMP1: 2 x 33.1 mm inlet restrictors
6 Stage dry sump oil pump

Porsche M96/70, boxer 6 (180o) cyl, 4 stroke, petrol engine, located rear longitudinally
3598cc, 100 x 76.4 mm
600 bhp / 448 KW
800 Nm / 590 ft lbs
forged steel crankshaft with 8 plain main bearings 60mm diameter, 55mm big end journal diameter
titanium connecting rods, 58mm big end bearing diameter
aluminium alloy block and head
DOHC, 4 valves/cyl - 24 valves total
aspiration, 2 x KKK K16/16G Turbos, Bosch Motronic ME 7.8 multipoint electronic Fuel Injection
Firing order: 1-6-2-4-3-5
watercooled
dry sump

Judd GV4, V10 (72o) cyl, 4 stroke, petrol engine. Click here and here
3997cc, 94.0 x 57.6 mm
600 bhp / 448 KW @ 10250 rpm
450 Nm / 332 ft lbs @ 8500 rpm
aluminium block and head
forged steel crankshaft with 6 main bearings
DOHC, 4 valves/cyl - 40 valves total
aspiration, natural with multipoint electronic fuel injection. 1 x 48mm inlet restrictor, or 2 x 33.4mm inlet restrictors
water cooled
Dry sump

Caterpillar/VW TDI, V10 (90o) cyl, 4 stroke, diesel engine
4921cc, 81.0 x 95.5 mm
1050 Nm @ 2500 RPM
cast aluminium alloy head, low-pressure die-cast aluminium alloy (AlSi8Cu3) block bolted-on grey cast iron bearing tunnel and crank carrier with 6 main bearings, die-forged steel cross-plane crankshaft with 18-degree crankpin offset to achieve a 72-degree even firing order, contra-rotating balance shaft, 88mm bore spacing
18.0:1 (Street version)
forged steel crankshaft with 6 main bearings
SOHC gear driven, 2 valves/cyl - 20 valves total
2 x Garrett turbochargers with Pectel multipoint electronic fuel direct injection (TDI). 2 x 32.7mm inlet restrictors
dry sump

Carbon fiber and aluminum honeycomb monocoque chassis
6-speed sequential gearbox
power assisted rack and pinion steering
Length 4,640 mm (15 ft 3 in)
Width 1,990 mm (6 ft 6 in)
front track 1,660 mm (5 ft 5 in)
rear track 1,580 mm (5 ft 2 in)
Wheelbase 2,800 mm (9 ft 2 in)
910kg
fuel Tank 90 liters


Results in FIA Sports Cars Championship

Season
Car entry, chassis number Car number, result
Barce lona Monza Spa Daytona Road America Brno Donington Nurbur gring Magny Cours Kyalami
Team 2.5h 500km 2.5h 250mil 500mil 2.5h 2.5h 2.5h 2.5h 2.5h
Philip Creighton Motorsports, B2K10-HU02 (Ford) #8, eng ine in practice #8, 7th
Franz Konrad, B2K10-HU04 (Ford) #15, in entry list #15, 3rd #15, in entry list
Intersport Racing, B2K10-HU06 (Judd) #37, 5th
Total points
18
10 8
Statistics
Works Starts/finishes 4/3 1/0 2/2 1/1

Teams and drivers entries

Results in Endurance races

Team entry, chassis number Car number, result
Daytona Sebring Le Mans Nurburg Watkins Glen Petit Le Mans Adelaide
Date 6/2 18/3 18/6 9/7 17/8 30/9 31/12
Duration 24h 12h 24h 1000km 6h 1600km 1000km
Team\ Championship GA RR ALMS ALMS GA RR ALMS ALMS
Team Rafanelli SRL, B2K10-HU01 (Judd) #0, stee ring #21, eng ine #0, acci dent #0, 13th
Philip Creighton Motorsports, B2K10-HU02 (Ford) #8, in entry list #8, in entry list #8, in entry list
Konrad Motorsport, B2K10-HU04 (Ford) #20, disqua lified #28, drive shaft #28, eng ine #28, 2nd
Intersport Racing, B2K10-HU06 (Judd) #37, 2nd #37, acci dent
Champion Racing, B2K10-HU03 (Porsche) #38, 26th in entry list #38, 21st
Sintura, (Judd) in entry list
Total points
18
9 9
Statistics
Works Starts/finishes 12/5 2/1 2/0 1/0 2/2 3/0 2/2

Teams and drivers entries


41_htNt_24.jpg Source
Olive Garden Rafanelli, Lola B2K/10
Lola_B2K10.jpg Source
giovanni-lav-1.jpg Source
Giovanni Lavaggi, Taurus Sports Racing, Lola B2K/10B Judd
269309800_orig.jpg Source
Lola B2K/10B Caterpillar/VW diesel

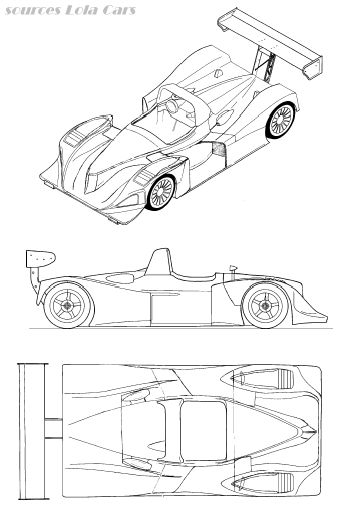

Drawings

B2K-10_Plan.gif Source
