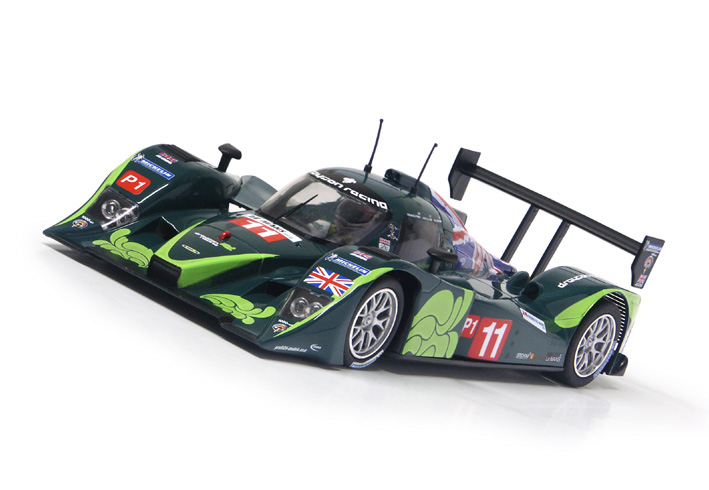

Lola B09/60 group LMP1 (2009)
Home » Racing Sports Cars » Lola B09/60
Source
Specifications
1 unit built
Click here
Analytical specifications and drawings
V10 (72o) cylinder
5496cc capacity
DOHC, 4 valves per cylinder
multipoint electronic fuel injection
Power output
700 bhp @ 8000 rpm
550 ft lbs @ 6500 rpm
XTrac Type 529 6 speed sequential gearbox
Carbon Fiber Monocoque chassis
f/r suspension TIG-welded Wishbones Inboard Coil spring/Adjustable Damper Units, Quick-change Anti-Roll Bars
power assisted rack and pinion steering
AP Racing calipers, carbon/carbon Brembo disks
Length 4634 mm (182.4 in)
Width 1990 mm
Wheelbase 2890 mm (113.8 in)
front wheels 13.5 x 18"
rear wheels 14.5 x 18"
900kg
fuel tank 90 lt
Results in Endurance races
| Team entry, chassis number | Car number, result | |||||||||||||
| Sebring | Cata lunya | Spa | Le Mans | Algrave | Nurburg | Silver stone | Petit Le Mans | Okayama | ||||||
| Date | 21/3 | 5/4 | 10/5 | 14/6 | 2/8 | 23/8 | 13/9 | 26/9 | 1/11 | |||||
| Duration | 12h | 1000km | 1000km | 24h | 1000km | 1000km | 1000km | 1600km | 1000km | |||||
| Championship | ALMS | LMS | LMS | LMS | LMS | LMS | ALMS | JLMS | ||||||
| Drayson Racing, B0960-HU03 | #88, 27th | #87, 5th | ||||||||||||
| Total points 6 |
6 | |||||||||||||
| Statistics | ||||||||||||||
| Works Starts/finishes 2/2 | 1/1 | 1/1 | ||||||||||||
Teams and drivers entries
Source
Source
Source
Source
Drawings
CAD
Source
