Lola B08/60 group LMP1 (2008)

Home » Racing Sports Cars » Lola B08/60

uplola1.jpg Source

2008: Lola B08/60 Aston Martin
2009: Lola B09/60 Judd

Specifications

3 units built
Click here and here and here for B08/60 Aston Martin
Click here for B09/60 Judd

Aston Martin AM04, V12 (60º) cyl, 4 stroke, petrol engine
5935cc, 89.0 x 79.5 mm
GT1: 600 bhp / 448 KW @ 6500 rpm, 650 Nm / 479 ft lbs @ 5500 rpm
LMP1: 650 bhp / 485 KW @ 7000 rpm, 725 Nm / 535 ft lbs @ 6250 rpm
aluminium alloy block and head
DOHC, 4 valves/cyl - 48 valves total
aspiration, natural with Pectel multipoint electronic fuel injection
GT1: 2 x 31.2mm inlet restrictors
LMP1: 1 x 47.8mm inlet restrictor
Firing order with A as left bank of the cylinders: 1A, 6B, 5A, 2B, 3A, 4B, 6A, 1B, 2A, 5B, 4A, 3B
dry sump

Judd GV5.5 S2, V10 (72o) cyl, 4 stroke, petrol - Ethanol E10 engine. Click here
5496cc, 94 x 79.2 mm
2006-2009: 650 bhp / 485 KW @ 7000 rpm, 657 Nm / 485 ft lbs @ 6500 rpm
2010: 700 bhp @ 8000 rpm, 550 ft lbs @ 6500 rpm
aluminium block and head
forged steel crankshaft with 6 main bearings
DOHC, 4 valves/cyl, 40 valves total
aspiration, natural with multipoint electronic Fuel Injection. 1 x 45.5mm inlet restrictor
dry sump

XTrac Type 529 6 speed sequential gearbox
Carbon Fiber Monocoque chassis
f/r suspension TIG-welded Wishbones Inboard Coil spring/Adjustable Damper Units, Quick-change Anti-Roll Bars
power assisted rack and pinion steering
AP Racing calipers, carbon/carbon Brembo disks
Length 4634 mm (182.4 in)
Width 1990 mm
Wheelbase 2890 mm (113.8 in)
front wheels 13.5 x 18"
rear wheels 14.5 x 18"
900kg
fuel tank 90 lt


Results in Endurance races

Car entry, chassis number Car number, result
Sebring Cata lunya Monza Spa Le Mans Nurburg Silver stone Petit Le Mans
Date 15/3 6/4 27/4 11/5 15/6 17/8 14/9 4/10
Duration 12h 1000km 1000km 1000km 24h 1000km 1000km 1600km
Championship ALMS LMS LMS LMS LMS LMS ALMS
Charouz Racing System, 0860-HU01 (Aston Martin) #10, 3rd #10, 17th #10, 29th #10, 9th
Charouz Racing System, 0860-HU02 (Aston Martin) #10, 5th #10, 2nd
Total points
25
8 2 6 9
Statistics
Works Starts/finishes 6/6 1/1 1/1 1/1 1/1 1/1 1/1

Teams and drivers entries


2008_Lola_B08601.jpg Source
lola_b08_60_aston_martin_img_24844.jpg Source

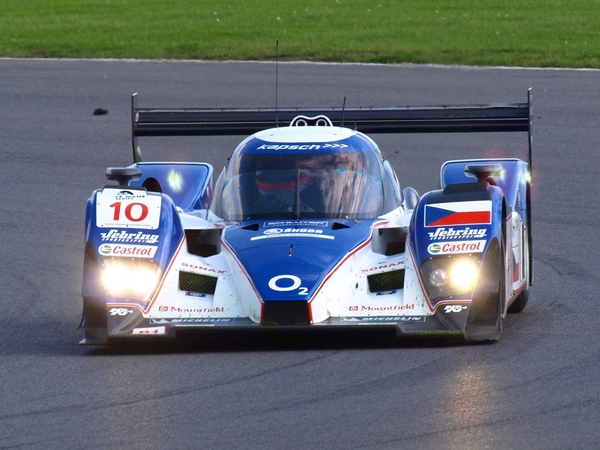

Lola B08/60 Aston Martin 2008
3915656685_f0185ce68b_z.jpg Source
Lola B08/60 Aston Martin 2009
Petit+Le+Mans+Practice+Qualifying+4YDqZa7BHwpl.jpg Source
Lola B09/60 Judd
Lola_B09_60_P1_Paul_Drayson_Jonny_Cocker_ALM_Laguna_Seca_2009_218_88_Daniel_Chin_Photo_2009.jpg Source
Lola B09/60 Judd

Drawings

00_LolaLMP2_2009.jpg Source

CAD

LolaB0860.jpg Source
