Lola B06/10 group LMP1 (2006)

Home » Racing Sports Cars » Lola B06/10

Source

Fold

Table of Contents

Specifications

Results in Endurance races

Chassis numbers

Specifications

6 units built
Click here and here and here and here and here
Click here for Audi engine
Click here for Judd engine

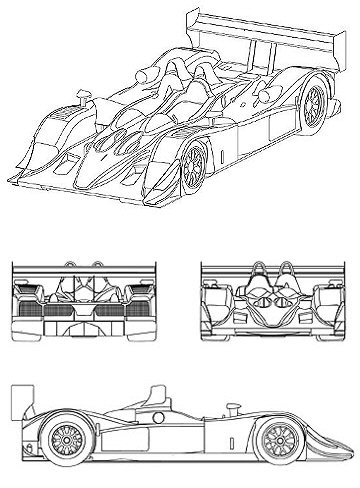

Analytical specifications and drawings

V8 (75^o) cylinder
3596cc capacity
DOHC, 4 valves per cylinder
2 x Garrett turbochargers with multipoint electronic fuel injection
Power output
600 bhp / 448 KW @ 6500 rpm
700 Nm / 516 ft lbs @ 6200 rpm

Audi TFSI, V8 (90^o) cyl, 4 stroke, petrol engine
3596cc, 85.0 x 79.2 mm
610 BHP (448.96 KW) @ 6800 rpm
516 Ft-Lbs (700 NM) @ 6500 rpm
aluminium block and head, 90mm cylinder bore spacing
forged steel crankshaft with 5 main bearings
DOHC, 4 valves/cyl - 32 valves total
Twin Garrett Turbos with 2 x air/water-cooled intercoolers. Bosch Motronic MS 2.9 multipoint electronic direct TFSI (Turbocharged-Fuel-Stratified Injection, 100 bar pressure) fuel injection, 2 x 30.7mm inlet restrictors. Pressure 1.67 bars
dry sump

Lola HT (high torque) 6 speed Sequential gearbox
carbon fibre and aluminium honeycomb monocoque chassis
Front/rear suspension, double wishbones, push-rod actuated coil springs over dampers
power assisted rack and pinion steering
Hitco ventilated carbon ceramic discs 380mm diameter, all-round
length 4630 mm
width 1999 mm / 78.7"
height 1029 mm / 40.5"
wheelbase 2890 mm
Wheels: Front: 18" x 13.5", Rear: 18" x 14.5"
Tires: Front: 285/650 x 18”, Rear: 325/650 x 18”
925kg
fuel tank 90 lt

Results in Endurance races


Car entry, chassis number	Car number, result
	Sebring	Istanbul	Spa	Le Mans	Nurbu rgring	Doni ngton	Jarama	Petit Le Mans
Date	18/3	9/4	14/5	18/6	16/7	27/8	24/9	30/9
Duration	12h	1000km	1000km	24h	1000km	1000km	1000km	1600km
Championship	ALMS	LMS	LMS		LMS	LMS	LMS	ALMS
Dyson Racing Team, B0610-HU01 (AER P32T)	#16, 5th							#16, mecha nical
Dyson Racing Team, B0610-HU02 (AER P32T)	#20, over heating							#20, acci dent
Chamberlain Synergy, B0610-HU07 (AER P32T)		#19, 4th	#19, dnf	#19, 24th	#19, 4th	#19, 21st	#19, 5th

Total points 26	6	7			7		6
Statistics
Works Starts/finishes 10/6	2/1	1/1	1/0	1/1	1/1	1/1	1/1	2/0

Teams and drivers entries

+ Show Dyson Racing Team (16, 20)

+ Show Chamberlain Synergy team (19)


Team entry, chassis number	Car number, result
	Sebring	Monza	Valencia	Le Mans	Nurburgr	Spa	Silver stone	Petit Le Mans	Mil Milhas
Date	17/3	15/4	6/5	17/6	1/7	19/8	16/9	6/10	10/11
Duration	12h	1000km	1000km	24h	1000km	1000km	1000km	1600km	1600km
Championship	ALMS	LMS	LMS		LMS	LMS	LMS	ALMS	LMS
Swiss Spirit, B0710-HU01 (B07/18 Audi)		#5, in entry list	#5, 3rd	#5, elec trics	#5, in entry list	#5, in entry list
Charouz Racing, B0610-HU03 (B07/17 Judd)		#15, 30th	#15, 2nd	#15, 8th	#15, 4th	#15, 25th	#15, suspe nsion
Team Cytosport, B0610-HU02 -> B0610-HU01S (B06/14 AER P32T)								#06, 14th
Chamberlain-Synergy Motorsport, B0610-HU07 (AER P32T)		#19, dnf	#19, 14th	#19, 20th	#19, 21st	#19, 15th	#19, dnf
Intersport Racing, B0610-HU01 (AER P32T)								#37, acci dent

Total points 27			17	3	7
Statistics
Works Starts/finishes 16/11		2/1	3/3	3/2	2/2	2/2	2/0	2/1

Teams and drivers entries

+ Show Swiss Spirit team (5)

+ Show Charouz Racing team (15)

+ Show Team Cytosport (06)

+ Show Chamberlain-Synergy Motorsport team (19)

+ Show Intersport Racing team (37)


Car entry, chassis number	Car number, result
	Sebring	Cata lunya	Monza	Spa	Le Mans	Nurburg	Silver stone	Petit Le Mans
Date	15/3	6/4	27/4	11/5	15/6	17/8	14/9	4/10
Duration	12h	1000km	1000km	1000km	24h	1000km	1000km	1600km
Championship	ALMS	LMS	LMS	LMS		LMS	LMS	ALMS
Charouz Racing System, 0610-HU03 (B07/17 Judd)		#12, in entry list	#12, in entry list		#12, eng ine			#30, acci dent*
Chamberlain Synergy, 0610-HU07 (AER P32C)		#19, 31st	#19, in entry list		#19, eng ine			#12, acci dent+
Intersport Racing, 0610-HU01 (AER P32C)	#37, 9th
Intersport Racing, B0610-HU02 -> B0610-HU01S (AER P32C)								#37, mecha nical

Total points 2	2
Statistics
Works Starts/finishes 7/2	1/1	1/1			2/0			3/0

*Intersport Racing entry
+Autocon Motorsports entry

Teams and drivers entries

+ Show Charouz Racing System team (12)

+ Show Autocon Motorsports team (12)

+ Show Chamberlain Synergy team (19)

+ Show Intersport Racing team (30)

+ Show Intersport Racing team (37)

Team entry, chassis number	Car number, result
	Sebring	Cata lunya	Spa	Le Mans	Algrave	Nurburg	Silver stone	Petit Le Mans	Okayama
Date	21/3	5/4	10/5	14/6	2/8	23/8	13/9	26/9	1/11
Duration	12h	1000km	1000km	24h	1000km	1000km	1000km	1600km	1000km
Championship	ALMS	LMS	LMS		LMS	LMS	LMS	ALMS	JLMS

Autocon Motorsports, B0610-HU07 (AER P32C)	#12, elec trics			in entry list				#12, acci dent
Intersport Racing, B0540-HU08 (AER P32C)	#37, mecha nical							#37, mecha nical

Statistics
Works Starts/finishes 4/0	2/0							2/0

Team entry, chassis number	Car number, result
	Sebring	Le Castellet	Spa	Laguna Seca	Le Mans	Algrave	Hungar	Silver stone	Petit Le Mans	Zhuhai
Date	20/3	11/4	9/5	22/5	13/6	17/7	22/8	12/9	2/10	7/11
Duration	12h	8h	1000km	6h	24h	1000km	1000km	1000km	1600km	1000km
Championship	ALMS	LMS	LMS	AMLS		LMS	LMS	LMS- ILMS	ALMS -ILMS	ILMS

Autocon Motorsports, B0610-HU07 (AER P32C)	#12, dns			#12, elec trics	#19, gear box				#12, 38th
Intersport Racing, B0610-HU02 -> B0610-HU01S (AER P32C)	#37, acci dent in practice			#37, eng ine					#37, 5th

Total points 6									6
Statistics
Works Starts/finishes 7/2	2/0			2/0	1/0				2/2

Entrant, chassis number	Car number, result
	Sebring	Spa	Le Mans	Imola	Silver stone	Petit Le Mans	Zhuhai
Duration	12h	1000km	24h	6h	6h	1600km	6h

Autocon, B0610-HU07 (AER P32C)						#012, 32nd
Intersport Racing, B0610-HU02 -> B0610-HU01S (AER P32C)	#037, in entry list

Statistics
Works Starts/finishes 1/1						1/1
