Ligier JS3 group 6 (1971)

Home » Racing Sports Cars » Ligier JS3

2144-1.jpg Source

Specifications

1 unit built
Click here

Engines

Analytical specifications and drawings

V8 (90o) cylinder
2993cc capacity
DOHC with 4 valves per cylinders
Natural aspiration with Lucas Mark II mechanical fuel injection
Power output, 420 HP / 313 KW @ 9000 rpm
Torque, 366 Nm / 270 ft lbs @ 7000 rpm

Hewland FG 400, 5 speed Manual gearbox
fibreglass body on aluminium monocoque chassis
Front suspension double wishbones, coil springs over dampers, anti-roll bar
Rear suspension double wishbones, twin radius arms, coil springs over dampers, anti-roll bar
rack-and-pinion steering
wheelbase 2250 mm (88.6 in)
650kg


Results in WSCC

Season
Car entry Car number/ result
Buenos Ayres Dayt Sebring Brands Hatch Monza Spa Targa Florio Nurb Le Man Zeltweg Watkins Glen
Team 1000km 24h 12h 1000km 1000km 1000km 1000km 24h 1000km 6h
Automobiles Ligier, JS3-01 #24, OTL
Statistics
Works Starts/finishes 1/0 1/0
Driver Team entries and car number
Automobiles Ligier
Guy Ligier 24
Patrick Depailler 24

ligier-JS3-LM71.jpg Source
4806689613_7487d19ca0.jpg Source

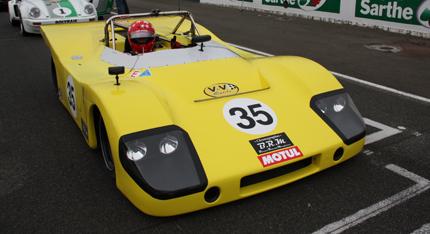

11vdev935k.jpg Source
img02_2.jpg Source
2144-5.jpg Source

Drawings

js3-img010-800x600-img.jpg Source
