Lancia Beta Monte Carlo Turbo group 5 (1979)

Home » Racing Sports Cars » Lancia Beta Monte Carlo Turbo

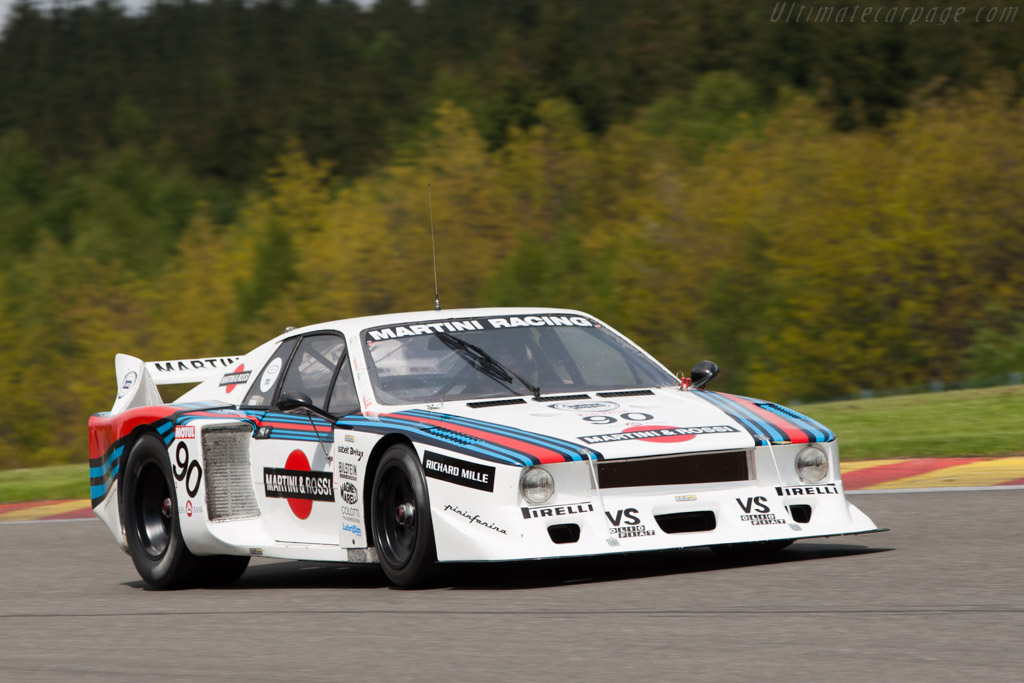

Lancia-Beta-Montecarlo-Turbo-15569.jpg Source

Chassis numbers here

Specifications

11 units built
Manuals
Technical revue - part list
Click here and here and here

Lancia 14.78.T, 4 cyl, 4 stroke, petrol engine
82.0 x 67.5 mm
1425 cc
7.0:1
cast-iron block, aluminium head
single KKK turbo and Bosch Kugelfischer mechanical fuel injection
Dry sump

1979: 370 hp/1.2 bar
1980: 410 hp/1.6 bar
1980: 1429 cc: +2 mm oversize bore, class >2000 cc, 420 bhp/1.6 bar single turbo
1981: 420-425 hp/1.6 bar
1981: 1429 cc: +2 mm oversize bore, class >2000 cc, 440 bhp/1.5 bar twin turbo
1981: 1775 cc: +2 mm and 12.5 mm longer stroke: 490 bhp/1.5 bar twin turbo
The twin turbo layout on all engines for better drive ability was not used after the Nürburgring

Transmision: trasera. Caja de cinco marchas adelante y marcha atrás, todas sincronizadas y con comando central en el piso.
Colotti, 5 speed manual gearbox
Ratios:
1st: 3.75/1
2nd: 2.235/1
3rd: 1.522/1
4th: 1.152/1
5th: 0.925/1
R: 3.071/1
single dry clutch, 215mm diameter
steel monocoque 137AS chassis with roll cage.
Front suspension, McPherson struts, lower A-arms, coil springs, tubular shock absorbers, anti-roll bar
Rear suspension, Chapman struts, lower A-arms, trailing arms, tubular shock absorbers, anti-roll bar
Brakes: dual circuit with servo. Lockheed ventilated disks all around
1979, 10.5 x 16 front and 14 x 16 rear wheels.
1980, wheels where 15"x10"front and 19"x13,5"rear
1981, Front 15"and rear 19" wheels, later front 16" wheels with bigger brakes.
Cw 0.32
1979: 750 kg
1980-1981: 770 kg


Results in WSCC

Season
1425cc
Car entry Car number/ result
Daytona Mugello Dijon Silver stone Nurb Pergusa Watkins Glen Brands Hatch Valle lunga
Team 24h 6h 6h 6h 1000km 6h 6h 6h 6h
A.S.A.-Corso Marche 38 Turin, 1001 #51, head gasket #23, oil pipe #11, 2nd #31, 5th #32, gear box
A.S.A.-Corso Marche 38 Turin, 1002 #31T, spare car #31, gear box
Total points
15
9 6
Statistics
Works Starts/finishes 6/2 1/0 1/0 1/1 1/1 2/0
Driver Team entries and car number
A.S.A.-Corso Marche 38 Turin
Riccardo Patrese 51 23 11 31, 31T
Walter Röhrl 51 23 31, 31T 31
Carlo Facetti 11
Giorgio Pianta 31, 32
Eddie Cheever 31
Markku Alén 32

Lancia-Beta-Montecarlo-Turbo_2.jpg Source
1980_Lancia_Beta_Montecarlo_Turbo_Gr._5_012_6414.jpg Source
ebay141588304771986.jpg Source

Drawings

lancia-montecarlo-turbo-gruppo-5.jpg Source
beta-06.jpg Source
lancia-beta-monte-carlo-turbo.gif Source
