Fiat Ritmo 138A3 125TC Abarth group A (1982)
Home » Rally Cars » Fiat Ritmo 138A3 125TC
13712162_772088979598924_1977031400_n.jpg?ig_cache_key=MTMwMzc4NTM1NTAwNjQ0OTk0OA%3D%3D.2 Source Development chain
1978: Fiat Ritmo 138A2 75L
1982: Fiat Ritmo 138A2 105TC
1982: Fiat Ritmo 138A3 125TC
1984: Fiat Ritmo 138A9 130TC

Also called Fiat Strada 125TC Abarth serie 1 (1981)

Specifications

Click here
Click here and here for street version (serie 1)
Click here for street version (serie 2)
Homologation number: A 5021
Homologation start: 1/4/1982
straight 4cyl, located front transverse
1995cc
11.0:1
200 HP @ 5800 rpm
230 Nm @ 5000 rpm
2 valves/cyl - 8 valves total. 43.5mm inlet valve diameter, 36mm exhaust valve diameter
aspiration, natural with 1 x Weber 34 DMTR 51/250 carburetor
steel monocoque 138A chassis with roll cage. 3 door hatchback steel bodyshell
820kg


Results in WRC

Races

Season
Entry Rally event
Driver
Codriver
Team M.C (SVE) POR KEN TdC GRE N.Z BRA FIN S.R (CdI) RAC
Gerard Swaton
Bernard Cordesse
dnf
Statistics
Others starts/finishes 1/0 1/0

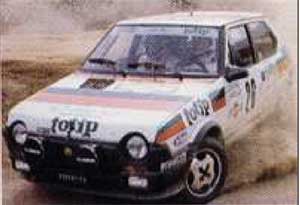

PROG-0423.jpg Source

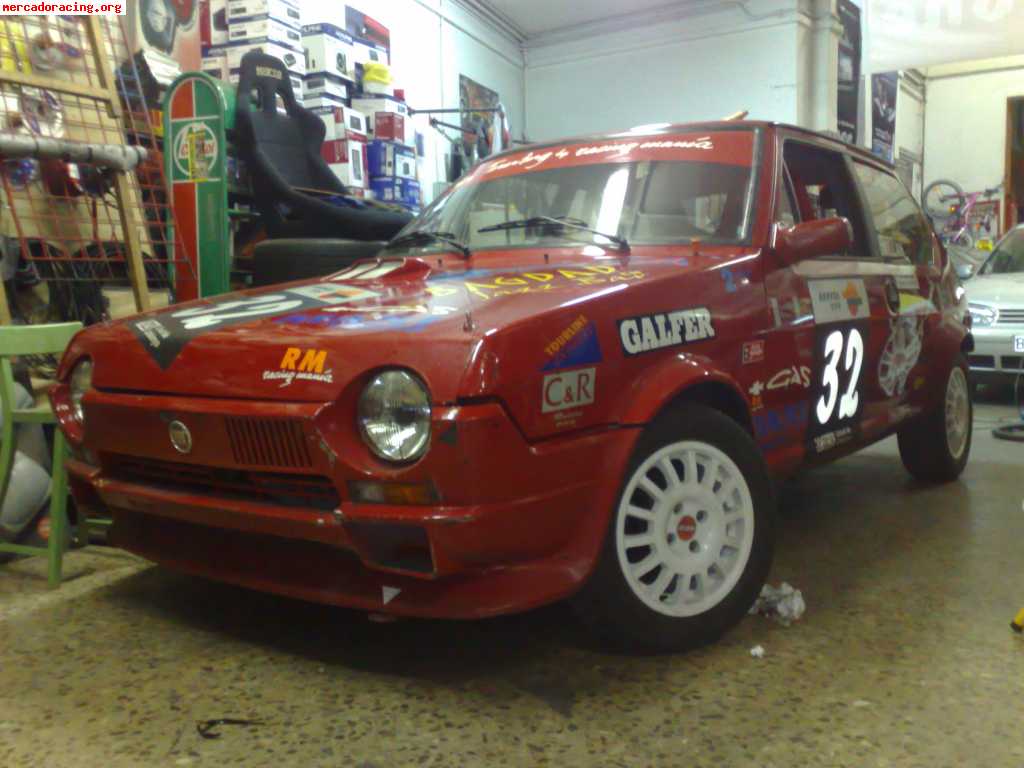

venta-fiat-ritmo-125tc-abarth.jpg Source
Ritmo_Abarth_125_TC.JPG Source
fiat_ritmo_abarth_125_tc_3.jpg Source
3417671618_60f973ace1.jpg Source
IMG-20110702-00143.jpg Source
22680020090_bf804841f3_b.jpg Source
Weber 34 DMTR 51/250 carburetor

Drawings

b61131fe2e26f9b2af96c719b7507e80.jpg Source

Front wheel

09.4289.10.jpg Source
Front disc brake drawing
FI-002-0.gif Source
Front C.V. joint drawing
