Fiat Punto Type 188 S1600 (2000)
Home » Rally Cars » Fiat Punto Type 188 S1600
c162ff5cd5b7289c11f0d190b653507f.jpg Source Development chain
2000: Fiat Punto Type 188 S1600
2006: Fiat Grande Punto S2000

Also called Fiat Punto Kit Car

Specifications

Click here
Fiat Punto Rally Built
Group/Class A/6 Homologation number: A5609: 02/01 VK (Kit Car) and 09/01 KS (S1600)
Years active 2000-2005 Homologation start: 1/2/2000 (Kit Car) and 1/3/2001 (S1600)
Homologation end: 31/12/2012
Engine
Type Fiat Pratola Serra Modular 1.8 16V, straight 4 cyl, 4 stroke, petrol engine located front transverse with 16.5o front inclination
Capacity 1598 cc WRC: 1598 cc
Bore x Stroke (mm) 82.515 x 74.7
Compression ratio 12.0:1
Output power - torgue 210 - 215 HP / 9000 rpm 20.0 kgm (196 Nm) / 6600 rpm
Main bearings forged steel crankshaft with 5 main bearings 50mm diameter.
2001, S1600: 54mm main bearings diameter		 connecting rod length between centers 158.6mm, big end bearing tunel diameter 53.9mm, aluminium alloy piston with 1.2/1.5/2mm rings
Materials block: cast iron, 271.2mm height cylinderhead: cross flow aluminium alloy with hemispherical combustion chambers
Cams/valves dual overhead camshafts (DOHC), belt driven 4 valves/cyl. - 16 valves total. 33.7mm inlet valves diameter, 28.2mm exhaust valves diameter. 26o angle between inlet valves and vertical, 21o angle between exhaust valves and vertical
Aspiration natural, Hitachi MPI multipoint electronic fuel injection, 2001, S1600: Magneti Marelli MF4 multipoint electronic fuel injection
Ignition Magneti Marelli MF4, firing order 1-3-4-2
Cooling system jacketed watercooled with pump, radiator, fan and thermostat
Lubrication system wet sump, dry sump
Transmission
Type front wheel drive 5 speed manual gearbox, or Hewland 6-speed sequential gearbox
Gearbox ratios Manual:
1st: 3.909/1 (43/11)
2nd: 2.238/1 (47/21)
3rd: 1.520/1 (38/25)
4th: 1.156/1 (37/32)
5th: 0.872/1 (34/39)
R: 3.909/1 (43/11)		 Sequential:
1st: 3.308/1 (43/13)
2nd: 2.500/1 (40/16)
3rd: 2.111/1 (38/18)
4th: 1.750/1 (35/20)
5th: 1.476/1 (31/21)
6th: 1.240/1 (31/25)
R: 2.813/1 (45/16)
Diffrential ratio 3.867/1 (58/15), 3.058/1 (52/17), 3.176/1 (54/17), 3.312/1 (53/16), 3.437/1 (55/16), 3.600/1 (54/15), 3.733/1 (56/15), 3.928/1 (55/14), 4.071/1 (57/14), 4.231/1 (55/13), 4.385/1 (57/13), 4.538/1 (59/13), 2.944/1 (53/18), 3.421/1 (65/19), 3.667/1 (55/15), 3.500/1 (56/16), 3.375/1 (54/16), 4.308/1 (56/13), 4.462/1 (58/13), 4.154/1 (54/13), 3.857/1 (54/14), 3.909/1 (43/11), 4.091/1 (45/11), 4.182/1 (46/11), 4.400/1 (44/10), 4.500/1 (45/10), 3.750/1 (45/12), 3.538/1 (46/13), 3.400/1 (51/15), 3.428/1 (48/14), 3.461/1 (45/13), 3.417/1 (41/12), 3.500/1 (49/14), 3.500/1 (42/12), 3.571/1 (50/14), 3.615/1 (47/13), 3.583/1 (43/12), 3.786/1 (53/14), 3.769/1 (49/13), 3.923/1 (51/13), 3.917/1 (47/12), 4.077/1 (53/13), 4.083/1 (49/12), 4.167/1 (50/12), 4.214/1 (59/14), 4.250/1 (51/12), 4.200/1 (42/10), 4.417/1 (53/12), 4.364/1 (48/11), 4.583/1 (55/12), 4.545/1 (50/11), 3.308/1 (43/13), 2.947/1 (56/19), 2.895/1 (55/19), 2.850/1 (57/20), 2.800/1 (56/20), 5.888/1 (53/9), 5.300/1 (53/10), 5.455/1 (60/11), 4.818/1 (53/11), 4.692/1 (61/13), 3.933/1 (59/15), 3.588/1 (61/17), 4.923/1 (64/13), 5.900/1 (59/10), 6.333/1 (57/9), 4.272/1 (47/11), 4.909/1 (54/11), 5.000/1 (55/11), 5.727/1 (63/11), 3.400/1 (51/15), 3.125/1 (50/16), 3.563/1 (57/16), 3.353/1 (57/17), 3.053/1 (58/19), 3.150/1 (63/20), 4.833/1 (58/12), 3.467/1 (52/15), 4.308/1 (56/13), 5.545/1 (61/11), 5.308/1 (69/13), 5.500/1 (55/10), 4.857/1 (68/14).
2001, S1600: 4.857/1 (68/14), 4.500/1 (63/14), 5.667/1 (68/12)		 helical spur gears, friction discs mechanical limited slip front differential
Clutch dry single plate disc, 199mm diameter. 2004 ET: 184mm diameter
Chassis-body
Type steel monocoque Type 188 chassis with front steel subframe and 48kg steel (D50x1.5, D40x1.5mm) roll-cage. 3 door hatchback steel bodyshell with steel doors, steel front/rear bonnets, polypropylene front/rear bumpers, extended wheel arches and plastic rear top airofoil
Front suspension mac pherson strut with lower "L" wishbones, coil springs, telescopic gas shock absorbers and antiroll bar
Rear suspension trailing arm with coil springs, telescopic gas shock absorbers and antiroll bar
Steering system rack and pinion with hydraulic power assistance
Brakes Front ventilated discs 257mm diameter with 1 cast iron piston caliper 54mm diameter. Rear solid discs 240mm diameter with 1 aluminium/cast iron piston caliper 34mm diameter.
Front ventilated discs 355mm diameter with Brembo 8 aluminium piston calipers 4x32+4x26mm pairs diameter, or ventilated discs 300mm diameter with Brembo 4 aluminium piston calipers 2x44+2x36mm pairs diameter, or ventilated discs 250 to 390mm diameter with Alcon 6 aluminium piston calipers 2x27+2x31.8+2x38.1mm pairs diameter.
Rear solid discs 251mm diameter with Brembo 2 aluminium piston calipers 38mm diameter.
2001: front ventilated discs 355mm diameter with Brembo 4 aluminium piston calipers 2x42+2x36mm pairs diameter
2002: front ventilated discs 290mm diameter with AP 4 aluminium piston calipers 27.5mm diameter
2003: rear solid disc 278mm diameter		 dual circuit with Bosch-ISOVAC vacuum servo, air ducts for front discs air-cooling, and disc protection shileds
Dimensions
length: 3.800 m (149.6")
2004 ET: 3.843 m (151.3")		 width: 1.795 m (70.6") height: 1.480 m (58.3")
wheelbase: 2.460 m (96.9") front track: 1.600 m (63.0") rear track: 1.580 m (62.2")
Rims - tires tarmac: 7" x 17", gravel: 6" x 15"
Weight 980 kg
Fuel tank 50 lt

Results in WRC

Statistics

2000 2001 2002 2003 2004 2005 2006 2007 2008 Total
Total WRC results
Races/(S1600 wins) 5/(1) 8/(1) 6 7 7 9/(1) 1 1 1/(1) 45/(4)
Entries/finishes 12/5 54/21 27/12 29/12 42/17 20/10 1/1 1/1 1/1 187/80 (42.8%)
Total S1600 points 112 52 48 54 51 2 10 331
(7.355 per race)
(1.770 per entry)

Races

Works team: -

Season
Fiat Punto Kit Car
A/6 classification noted in brackets
Entry Rally event
Driver
Codriver		 Team MC SVE KEN POR ESP ARG GRE N.Z FIN CY TdC S.R AUS RAC
Massimo Macaluso
Antonio Celot		 mecha nical 53rd (8th) 65th (6th)
Panayiotis Hatzitsopanis
Kóstas Stefanis
9		 Fiat Auto Hellas acci dent
Luca Pedersoli
Nadia Mazzon		 Mirabella Mille Miglia acci dent 29th (1st)
Luca Cantamessa
Piercarlo Capolongo		 Meteco Corse SRL 31st (2nd)
Manuel Villa
Andrea Gorni		 43rd (5th)
Andrea Maselli
Nicola Arena		 drive shaft
Stefano Macaluso
Stefano Sinibaldi		 mecha nical acci dent
Mauro Durante
Paolo Trinchieri		 Motori & Motori mecha nical
Statistics
Works starts/finishes 12/5 1/0 1/0 1/0 7/4 2/1

Article from 4T 347, 8/1999

Click here

Fiat_Punto_Kit_Car_77.jpeg Source
Punto Kit Car

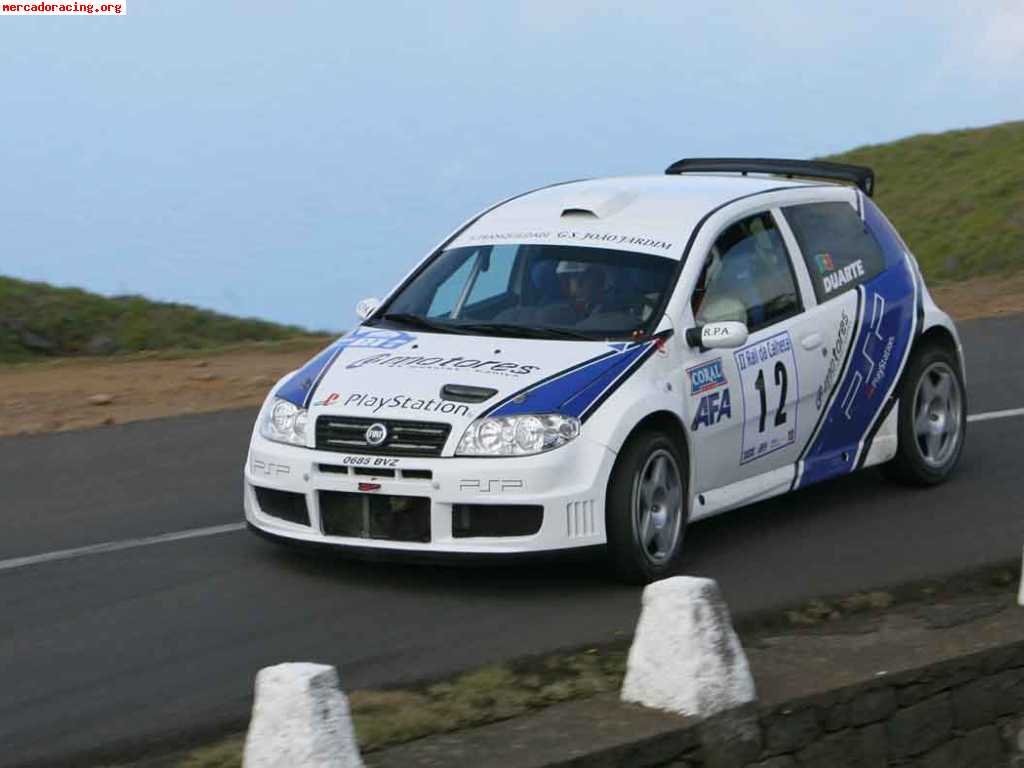

fiat-punto-s1600.jpg Source
Facelifted model since 2004

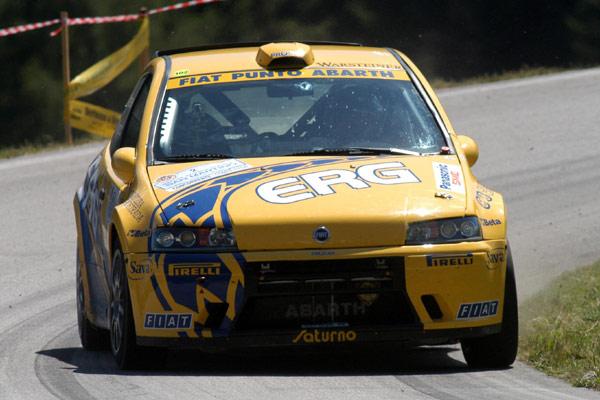

0acf817744f7d60a3f62d8a191c04cc9.jpg Source
2001 model
6076812765_1cfe8339fd_b.jpg Source

Drawings

PUN00902.jpg Source
68465d1262556655-fiat-punto-kit-car-scala-1-24-dscn8086.jpg Source
