Fiat Cinquecento Sporting group A (1995)
Home » Rally Cars » Fiat Cinquecento Sporting
Fiat_Cinquecento_Sporting_front_20081125.jpg Source Development chain
1992: Fiat Cinquecento
1995: Fiat Cinquecento Sporting
1998: Fiat Seicento Sporting

Click here

Specifications

Engine info
Click here
Click here and here for street version

Homologation number: A5529
Homologation start: 1/1/1995
Homologation end: 31/12/2005

Fiat F.I.R.E. 176 B2.000, straight 4 cyl, 4 stroke, petrol engine
1121cc, 70.4 x 72.0 mm
10.6:1
90 HP @ 7250 rpm
cast iron block, aluminium head
5 main bearings
single overhead camshaft (SOHC), 2 valves / cyl - 8 valves total
aspiration, natural with Weber-Marelli IAW electronic multi Point Injection (MPI)
static electronic ignition
watercooled
wet sump

Fiat F.I.R.E. 176 B2.000, straight 4 cyl, 4 stroke, petrol engine
1147cc, 71.0 x 72.0 mm
10:1
114 HP @ 7750 rpm
11.57 kgm @ 4500 rpm
cast iron block, aluminium head
5 main bearings
single overhead camshaft (SOHC), 2 valves / cyl - 8 valves total
aspiration, natural with Weber-Marelli IAW electronic Single Point Injection (SPI)
static electronic ignition
watercooled
wet sump

Fiat tipo C.514.5.10, 5 speed manual gearbox
1st: 3,909/1
2nd: 2,158/1
3rd: 1,480/1
4th: 1,121/1
5th: 0,829/1
R: 3,818/1
final drive, 4.923/1 (64/13), front differential
dry single disc clutch
rack and pinion steering
front disc brakes 240mm diameter, rear drums 185mm diameter
length, 3227 m
width, 1487 mm
height, 1435 mm
track f/r, 1264 / 1257 mm
wheels, tarmac 5.5 x 13", gravel 5 x 13"
tires, Michelin, tarmac slick 13/53-13, gravel 12/58-13
790 kg
drag coefficient, 0.33


Results in WRC

Races

Works team: -

Season

F2 classification noted in brackets
Entry Rally event
Driver
Codriver
Team (M.C) SVE POR (KEN) (TdC) GRE (ARG) (N.Z) FIN AUS S.R ESP RAC
Priscille De Belloy
Sophie Fabrello
34th (14th)
Denis Meschini
Jean-Paul Casabianca
40th (19th)
Mauro Durante
Paolo Trinchieri
dnf
Statistics
Others starts/finishes 3/2 3/2

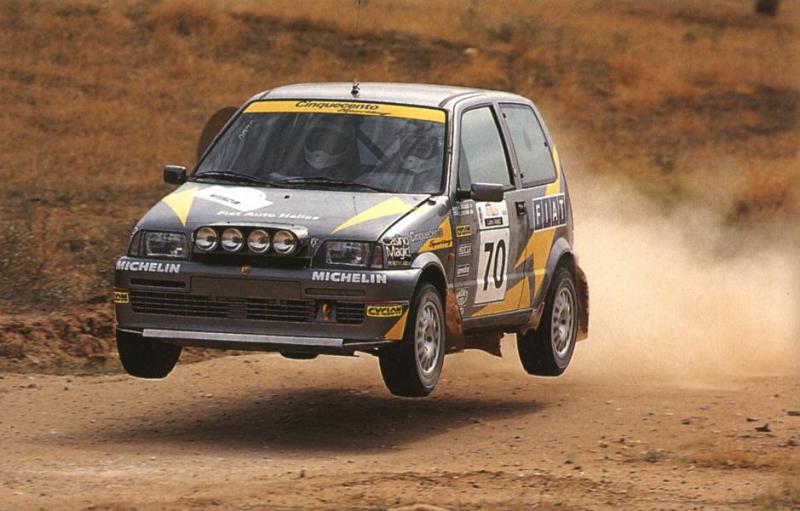

silver1.jpg Source
Fiat Auto Hellas

Drawings

engca1a.gif Source
