Ferrari 500 Mondial group S (1954)

Home » Racing Sports Cars » Ferrari 500 Mondial

1954_500.jpg Source

Chassis numbers

Specifications

31 units built
Click here and here and here

Ferrari Lampredi 500 Tipo 110, Straight 4 cyl, 4 stroke, petrol engine
1986cc, 90.0 x 78.0 mm
8.5:1
160 bhp / 119 kW @ 7000 rpm
light alloy block and head
2 valves / cylinder, DOHC
aspiration, natural with 2 x Weber 45 DCOA/3 Carburetors
Twin Spark per cylinder, twin magnetos
dry sump

Ferrari Lampredi 500 Tipo 111, Straight 4 cyl, 4 stroke, petrol engine
1986cc, 90.0 x 78.0 mm
9.2:1
170 bhp / 127 KW @ 7000 rpm
light alloy block and head
2 valves / cylinder, DOHC
aspiration, natural with 2 x Weber 40 DCOA/3 Carburetors
Twin Spark per cylinder, twin magnetos
dry sump

4 speed Manual gearbox
final drive, 5.06/1, 4.34/1, 4.12/1, 3.92/1, rear axle type 509
Tipo 501 (Serie I) or 510 (Serie II) steel elliptical-section Tubular rolling chassis, Pininfarina or Scaglietti spyder aluminium bodyshell, or 2 door Pininfarina Berlinetta bodyshell
Front suspension double unequal-length wishbones, coil springs, Houdaille hydraulic shock absorbers
Rear suspension de Dion, twin radius arms, semi-elliptic springs, Houdaille hydraulic shock absorbers
worm & sector steering
Hydraulic drum brakes all around
Length 4165 mm (164 in)
Width 1651 mm (65 in)
Height 1054 mm (41.5 in)
wheelbase 2250 mm / 88.6 in
front track 1278 mm / 50.3 in
rear track 1284 mm / 50.6 in
tires, front 5.50 - 16", rear 6.00 - 16"
720kg
fuel tank, 150 lt
drag coefficient, 0.4


Results in WSCC

Season

Car entry, chassis number Car number/ result
Buenos Aires Sebring Mille Miglia Le Mans Tourist Trophy Carrera Pan
Team 1000km 12h 1600km 24h
Scuderia Ferrari, 0406MD #523, 2nd
Elio Neri/ Antonio Neri, 0414MD #508, mecha nical

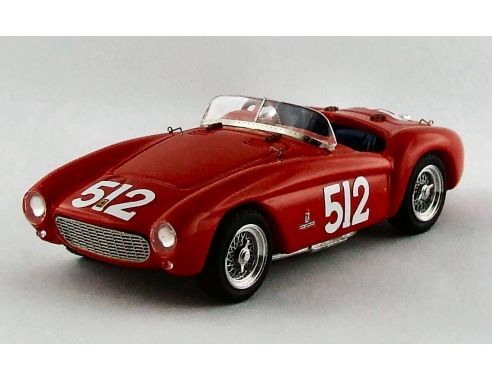

Enrico Sterzi/ O. Rossi, 0418MD #512, 15th
Franco Cortese/ Perrucchini, 0426MD #516, 14th
Bob Said/ Masten Gregory, 0454MD (Scaglietti Serie I) #31, 9th
Dominicana, 0464MD (Scaglietti Serie I) #3, disqua lified
Total points
11
9 2
Statistics
Works Starts/finishes 5/1 4/3 1/1 1/0
Drivers Team entries and car number
Scuderia Ferrari
Vittorio Marzotto 523
Dominicana
Porfirio Rubirosa 3
Ernie McAfee 3

1954-ferrari-500-mondial.jpg Source
Pininfarina Spider series I '54
Ferrari_500_Mondial_Pinin_Farina_Spyder.jpg Source
Pininfarina Spider series I '54
Ferrari_500_Mondial_Pinin_Farina_Berlinetta.jpg Source
Pininfarina Berlinetta '54
Ferrari-500-Mondial-Scaglietti-Spyder_2.jpg Source
Scaglietti Spider series II '55
Ferrari-500-Mondial-spider-by-Scaglietti-1955-fr3q.JPG [* http://www.fotosdecarros.com/ferrari/ferrari-500-mondial-spider-by-scaglietti-1955-fr3q/ Source]
Scaglietti Spider series II '55

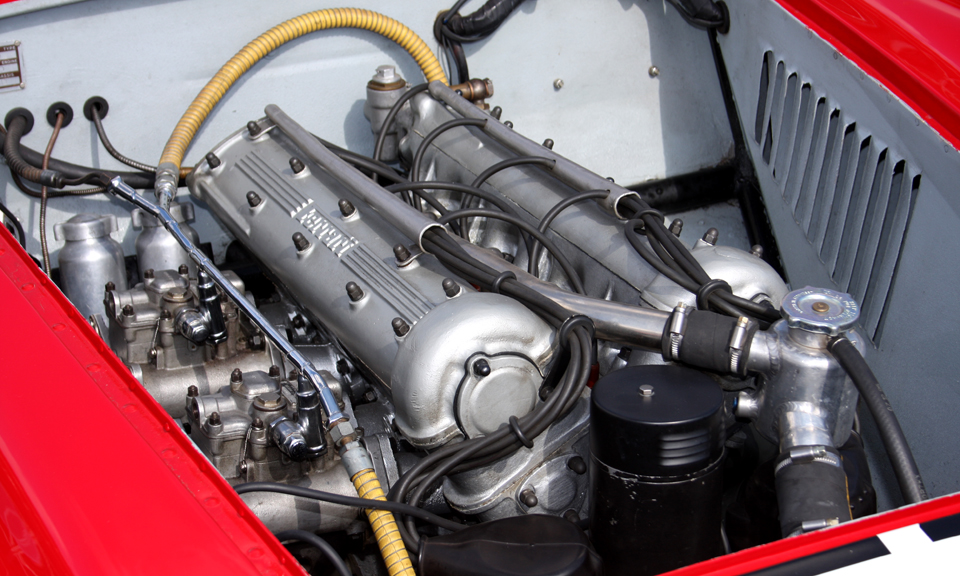

IMG_7591R.jpg Source

Drawings

latouretteferrari750mon.jpg Source
