Chassis numbers
Also called Chrysler LMP and Dallara LMP
Specifications
6 units built
Click here and here and here for Chrysler LMP
Click here and here
Analytical specifications and drawings
V10 (72o) cylinder
3997 cc capacity
DOHC, 4 valves per cylinder
multipoint electronic fuel injection
Power output
700 bhp / 522 kw @ 10500 rpm
508 nm / 375 ft lbs @ 8500 rpm
Chrysler LA Mopar V8/90°, by Caldwell Development, Inc
Click here
5998 cc, 105.5 x 85.7 mm
436.2 kw / 584.9 bhp
aluminium block with 113 mm bore spacing and 243.84 mm dech height, aluminium alloy cylinder head with wedge-shaped combustion chambers
forged shot peened steel cross plane crankshaft with 5 main bearings
connecting rod distance center to center 155.5 mm
side camshaft with overhead valves (OHV), 2 valves/cyl - 16 valves total
aspiration, natural with multipoint electronic fuel injection
X-Trac 6 speed semiautomatic gearbox. At 2005 Rollcentre Racing team used paddle shifted sequential gearbox
CFC clutch
Carbon fiber and aluminum honeycomb monocoque chassis, Carbon composite body panels
Front suspension, Double Wishbones, steel fabricated ventilated uprights, steel fabricated shock-absorbers Dynamic coil-over dampers, operated by push-rod, 4 ways of adjustments in bump and rebound, Anti-Roll bar
Rear suspension, Double Wishbones, steel fabricated ventilated uprights, steel fabricated shock-absorbers Dynamic coil-over dampers, operated by push-rod, 4 ways of adjustments in bump and rebound, Anti-Roll bar
Brembo 6 piston racing calipers front and rear. Carbone Industrie 380 mm (15 inches) carbon discs front with carbon pads 355 mm (14 inches) carbon discs rear with carbon pads.
Length: 4650 mm
Width: 1998 mm
Height: 1060 mm
Wheelbase: 2798 mm
Track Front: 1630 mm
Track Rear: 1590 mm
wheels, front 13.5"x18", rear 14.5"x18"
tires, Michelin Radial X, front 33/65-18", rear 36/71-18"
910kg
fuel tank, 90 lt
Results in FIA Sports Cars Championship
Car entry, chassis number | Car number, result | ||||||||||
Barce lona | Estoril | Brno | Magny Cours | Dijon | Spa | ||||||
Team | 2.5h | 2.5h | 2.5h | 2.5h | 2.5h | 2.5h | |||||
Team Oreca, DO 003 (Judd GV4) | #14, 2nd | #14, 1st | #14, in entry list | ||||||||
Total points 19 |
9 | 10 | |||||||||
Statistics | |||||||||||
Works Starts/finishes 2/2 | 1/1 | 1/1 |
Teams and drivers entries
Results in Endurance races
Car entry, chassis number | Car number, result | ||||||||||
Daytona | Sebring | Monza | Watkins Glen | Le Mans | Estoril | Petit Le Mans | |||||
Date | 4/2 | 17/3 | 22/4 | 19/5 | 17/6 | 15/7 | 6/10 | ||||
Duration | 24h | 12h | 1000km | 6h | 24h | 1000km | 1600km | ||||
Team / Championship | GA RR | ALMS | FIA SC | GA RR | ELMS | ALMS | |||||
Viper Team Oreca, DO 001 (Chrysler) | #14, fire | ||||||||||
Viper Team Oreca, DO 003 (Chrysler) | #15, eng ine | ||||||||||

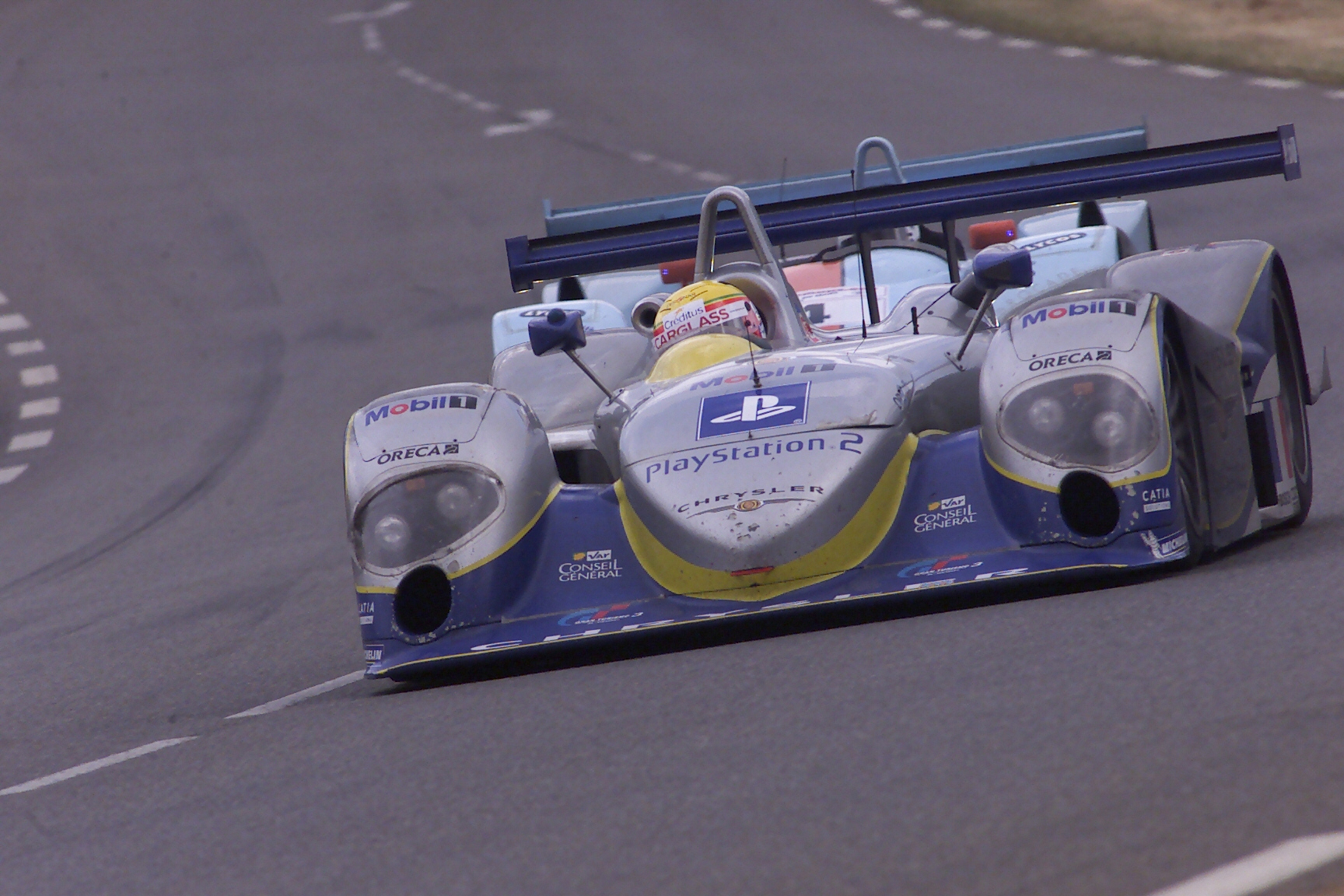

Team Playstation, DO 002 (Chrysler) | #16, 4th | in entry list | |||||||||
Total points 7 |
7 | ||||||||||
Statistics | |||||||||||
Works Starts/finishes 3/1 | 3/1 |
Teams and drivers entries
