Daihatsu Charade G11 Turbo group A (1984)
 Source |
Development chain 1984: Daihatsu Charade G11 Turbo 1988: Daihatsu Charade G100S GT-ti |
Specifications
| Group/Class | A/6 | Homologation number: A5185 |
| Years active | 1984-1987 | Homologation start: 1/1/1984 Homologation end: 31/12/1991 |
| Engine | ||
|---|---|---|

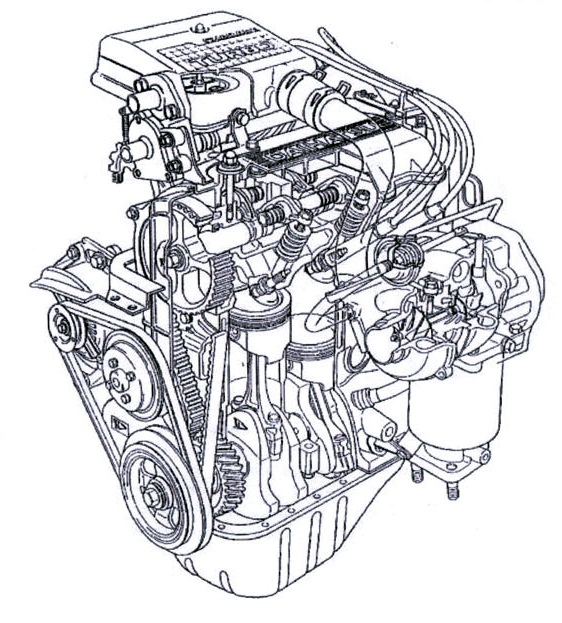

| Type | CB60, straight 3cyl, 4 stroke, petrol engine | located front transverse |
| Capacity | 993 cc | WRC: x 1.4 = 1390cc |
| Bore x Stroke (mm) | 76.0 x 73.0 | |
| Compression ratio | 8.0:1 | |
| Output power - torgue | 115 - 120 HP / 6500 rpm | 14.7 kgm (144 Nm) / 3500 rpm |
| Main bearings | 4 | |
| Materials | cylinderhead: aluminium alloy | |
| Cams/valves | 1 overhead camshaft (SOHC) | 2 valves/1cyl. - 6 valves |
| Aspiration | IHI RHB51 turbo turbocharger, carburator | pressure: |
| Ignition | electronic | |
| Cooling system | watercooled | |
| Lubrication system | wet sump | |
| Transmission | ||
| Type | front wheel drive | 5 speed |
| Gearbox ratios | 1st: /1 2nd: /1 3rd: /1 4th: /1 5th: /1 |
|
| Diffrential ratio | /1 | helical gears limited slip front differential |
| Clutch | dry, single disk | |
| Chassis-body | ||
| Type | steel monocoque G11 with roll-cage. 3 door hatchback steel bodyshell with plastic front and rear bumbers | |
| Front suspension | macpherson strut with lower wishbone, coil springs, telescopic gas shock absorber and anti-roll bar | |
| Rear suspension | dead axle upper, lower logitudinal links, panhard rod coil spring and telescopic gas shock absorbers | |
| Steering system | rack and pinion | |
| Brakes | front and back ventilated disks | dual circuit with adjustable ratio split front to rear |
| Dimensions | ||
| length: 3.595 m (141.5 in) | width: 1.550 m (61.0 in) | height: 1.395 m (54.9 in) |
| wheelbase: 2.320 m (91.3 in) | front track: 1.340 m (52.8 in) | rear track: 1.310 m (51.6 in) |
| Rims - tires | 14" | |
| Weight | 680kg | |
| Weight/power | 5.7 kg/HP | |
| Fuel tank | 40lt | |
Results in WRC
Statistics
| 1984 | 1985 | 1986 | 1987 | Total | |||||
| Total WRC results | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Races/(Group A-A/7 wins) | 2 | 1 | 3/(1) | 6/(1) | |||||
| Entries/finishes | 2/1 | 1/0 | 5/4 | 8/5 (62.5%) | |||||
Races
Works team: -
Group A classification is noted in brackets
| Entry | Rally event | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Driver Codriver |
Team | M.C | (SVE) Entry list |
POR | KEN | TdC | GRE | N.Z | ARG | FIN | S.R | (CdI) | RAC | ||
| Takeshi Hirabayashi Ivan Smith |
22nd (8th) | ||||||||||||||
| Kauko Mäkelä Pekka Tuomala |
Oy Maanteho | dnf | |||||||||||||
| Statistics | |||||||||||||||
| Others starts/finishes | 2/1 | 1/1 | 1/0 | ||||||||||||
Source
Drawings
