Courage C60 group LMP900 (2000)

Home » Racing Sports Cars » Courage C60

Courage-C60-Peugeot_5.jpg Source

Chassis numbers

Also called Courage C60 JX (2002)

Specifications

5 units built. 2 of them were converted to Courage C60 Evo in 2002, and 2 were rebuilt as Courage C60 Hybrid in 2005
Click here and here and here and here
Click here for C60 JX '02

Sodemo Peugeot ES9 J4S, V6 (60o) cyl, 4 stroke, petrol engine
3199cc, 92 x 80.2 mm
2000: 550 bhp @ 6500 rpm, 494 lb-ft.@ 5000 rpm (2 x 32.4mm inlet restrictors)
2002: 580 hp / 433 kW @ 6500 rpm, 494 lb-ft.@ 5000 rpm (2 x 32.4mm inlet restrictors)
2003+: 510 hp / 380 kW, 657 Nm / 485 ft lbs @ 5000 rpm (2 x 30.7mm inlet restrictors)
aluminium alloy block and head
forged steel crankshaft with 4 main bearings
DOHC, 4 valves/cyl - 24 valves total
aspiration, 2 x Garrett turbochargers with multipoint electronic Fuel Injection. 2 x 32.4mm inlet restrictors until 2002, 2 x 30.7mm inlet restrictors since 2003
firing order 1 - 6 - 3 - 5 - 2 - 4
water cooled
dry sump

Judd GV4, V10 (72o) cyl, 4 stroke, petrol engine. Click here and here
3997cc, 94.0 x 57.6 mm
600 bhp / 448 KW @ 10250 rpm
450 Nm / 332 ft lbs @ 8500 rpm
aluminium block and head
forged steel crankshaft with 6 main bearings
DOHC, 4 valves/cyl - 40 valves total
aspiration, natural with multipoint electronic fuel injection. 1 x 48mm inlet restrictor, or 2 x 33.4mm inlet restrictors
water cooled
Dry sump

Nissan VRH35L, V8 (90o) cyl, 4 stroke, petrol engine
3496cc, 85 x 77 mm
9.0:1
650 HP @6800 rpm
706 Nm (520 lb-ft)@4400 rpm
Aluminum-alloy block and head
forged steel crankshaft with 5 main bearings
DOHC, 4 Valves/cylinder - 32 valves total
aspiration, 2 x IHI turbochargers, multipoint electronic fuel injection
Engine Management: ECCS-R-NDIS
firing order 1 - 8 - 7 - 3 - 6 - 5 - 4 - 2
dry sump

X-Trac or Hewland 6 speed Sequential gearbox
carbon fibre and aluminium honeycomb monocoque chassis
Double wishbones, pushrods, horizontally located Dynamic spring damper units
rack and pinion
Carbon discs and pads (15 in front, 14 in rear), Brembo 6 piston calipers
Lenght : 4650 mm
Width: 2000 mm
Wheelbase: 2790 mm
920kg
fuel tank 90 lt


Results in FIA Sports Cars Championship

Season
Car entry, chassis number Car number, result
Barce lona Monza Spa Daytona Road America Brno Donington Nurbur gring Magny Cours Kyalami
Team 2.5h 500km 2.5h 250mil 500mil 2.5h 2.5h 2.5h 2.5h 2.5h
SMG Courage, C60-1 (Judd) #20, in entry list
Statistics
Works Starts/finishes 0/0

Teams and drivers entries

Results in Endurance races

Team entry, chassis number Car number, result
Daytona Sebring Le Mans Nurburg Watkins Glen Petit Le Mans Adelaide
Date 6/2 18/3 18/6 9/7 17/8 30/9 31/12
Duration 24h 12h 24h 1000km 6h 1600km 1000km
Team\ Championship GA RR ALMS ALMS GA RR ALMS ALMS
Courage Compétition (Nissan) in entry list
Courage Compétition, C60-2 (Nissan) #13, in entry list
SMG, C60-1 (Judd) #17, suspe nsion #17, acci dent
Statistics
Works Starts/finishes 2/0 1/0 1/0

Teams and drivers entries


2001LM17_car2.JPG Source
Courage-C60-Peugeot_8.jpg Source
9425.jpg Source
Courage C60 Peugeot '01
03.jpg Source
Courage C60 JX Judd '02
-center-courage-c60jx-judd-13-le-mans-2003-1-43-902-p.jpg Source
Courage C60 JX Judd '03

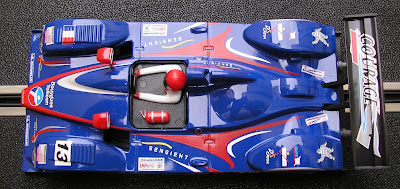

COURAGE+C60+HSR+SBB+%285%29.JPG Source
